LAGUNA Revo 12|16

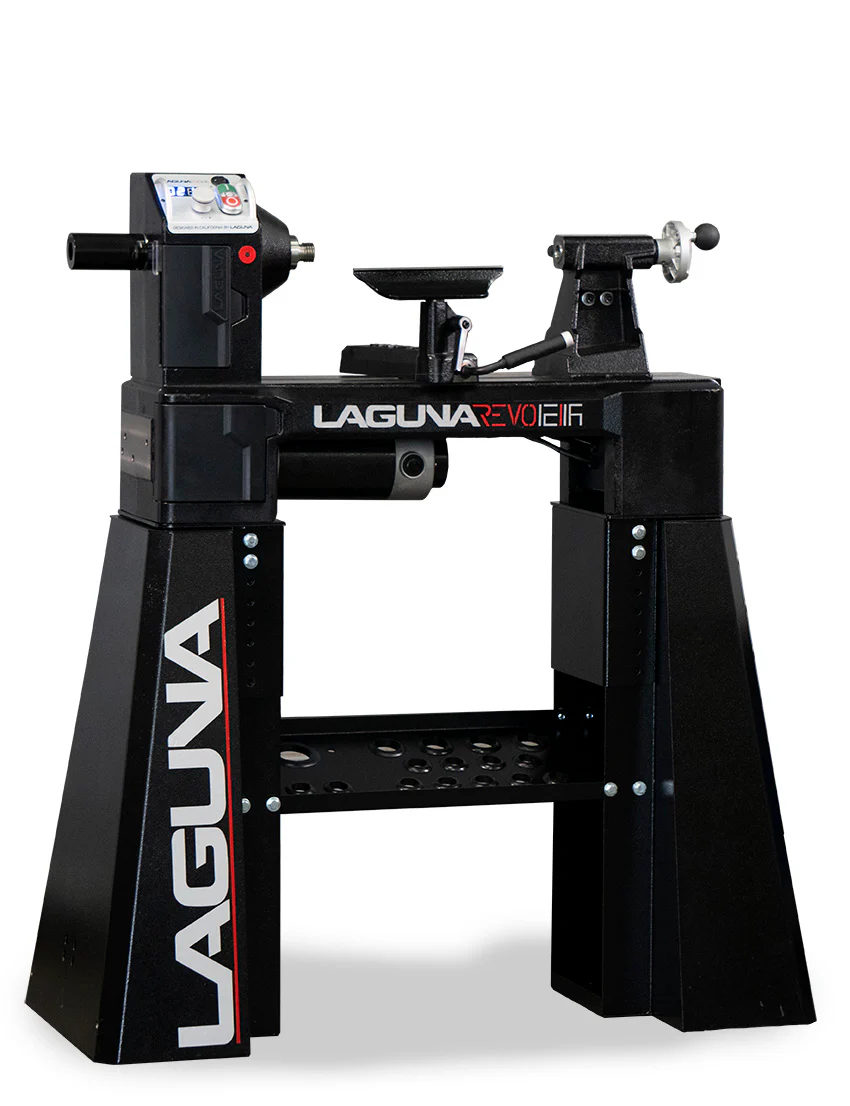

The definitive midi-lathe, Lagunaās REVO 12|16 encapsulates the prestige of Laguna in a small package. Featuring a Pulse Width Modulation system motor to maintain consistent torque at any speed, one step cam-action belt change with magnetic door housing, and a luxury banjo w/45Āŗ chamfered edge.
Owner's Manual
FEATURES:
- 1 HP DC Permanent Magnet Motor.
- Pulse Width Modulation (PWM) Controller.
Ā
The 1216 controls the 1hp DC motor using pulse width modulation. A big problem with DC motor control is torque in the low speeds, and you will find many MIDI lathes with the lowest speed of 250RPM and higher because of this. This is because the cost effect controllers introduce resistance into the voltage to limit the power, which reduces the speed but also reduces the torque at the same rate. PWM will deliver full torque across the entire speed range. This allows for tremendous torque in low speeds which is helpful when roughing and precision work. This also allows for outboard turning up to a 16ā bowl on a mid-sized lathe.
Electrical Requirements:Ā 110V-1PH-60Hz
Recommended Breaker Size:Ā 110V ā 15 Amp
Speed Range High:Ā 650 ā 3500 RPM
Speed Range Mid:Ā 325 ā 1750 RPM
Speed Range Low:Ā 50 ā 525 RPM
Distance Between Centers:Ā 15-Ā½ā³
Swing Over Bed:Ā 12-Ā½ā³
Swing Over Banjo:Ā 9-Ā½ā³
Max Outboard Swing:Ā 16ā³
Spindle Bore:Ā ā ā³
Spindle Thread:Ā 1ā³ x 8 TPI (Both Ends)
Front Bearing:Ā 6006LLU
Rear Bearing:Ā 6005LLU
Indexing:Ā 24 Positions With Lock
Accepts Vacuum Chuck:Ā No
Drive Belt:Ā Poly-V Belt 6 Grooves
Tailstock Quill:Ā MT #2
Tail Stock Quill Travel:Ā 2-Ā½ā³
Bed Length:Ā 29.4ā³
Bed Gap:Ā 1-1/4ā³
Tool Rest Length:Ā 6ā³
Tool Rest Post Diameter:Ā 1ā³
Faceplate Diameter:Ā 3ā³
Certification:Ā CSA C/US 256540
Floor To Bed Height:Ā 6-3/4ā³ No Pads
Floor To Spindle Center:Ā 13ā³ No Pads
Overall Size (L x W X H):Ā 35.8ā³ x 14.6ā³ x 20.5ā³
Net Weight:Ā 118 lbs
Shipping Weight:Ā 125 lbs
Shipping Dimensions:Ā 37ā³ x 15ā³ x 21ā³
