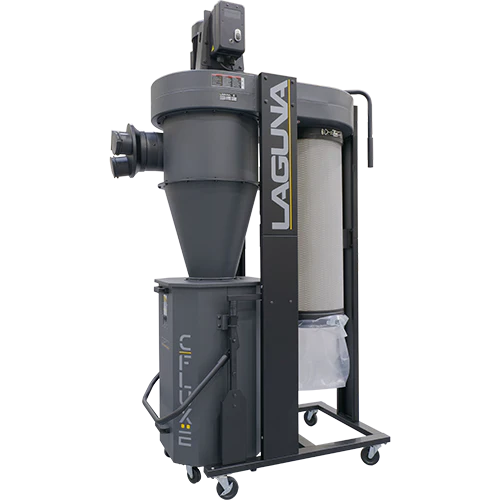

LAGUNA C|Flux: 2
For the popular C|Flux cyclone dust collectors, weāve kept the user-friendly aspects of the previous generation while adding smart new features to improve the user experience. Among the upgrades is a dual-paddle filter cleaning design, and a max level indicator to increase filter longevity.Ā The iconic octagonal drum grows to an impressive 46-gallon capacity on the C|Flux 2 and 3 models, and the newly redesigned 3-piece drum construction requires far fewer joints and fasteners cutting assembly time, while the locking casters provide additional stability.
Owner's Manual
FEATURES:
- 2 HP Motor.
- 1740 CFM Maximum Air Flow.
- 46 Gallon Octagon Drum.
Ā
Motor Specs:Ā 2HP
Electrical Specs:Ā 220V/ 60Hz / 1PH / 3450 RPM
Running AMP:Ā (6ā³ inlet) 14A at 220V
Maximum Air Volume:Ā 1740 CFM (Cubic Feet Per Minute)
Shop Setting Air Flow*:Ā 1166 CFM
Max Static Pressure:Ā 9.3ā³
Fan Size:Ā 14.5ā³
Inlet:Ā 6ā³ (8ā³ x 6ā³) Or (8ā³ x 4ā³ x 2 Ports)
Remote Control:Ā High Frequency
Collection Capacity:Ā 46 Gallon Octagon Drum
Decibel Reading:Ā 88 dB (@9.8ft)
Assembled Dimensions (L x W x H):Ā 48ā³ x 28ā³ x 87ā³
Packing Size (L x W x H):Ā 50ā³ x 31.5ā³ x 50.6ā³ (127 x 80 x 128.5 cm)
Machine Weight:Ā 301 lbs. (140 kg)
Shipping Weight:Ā 377 lbs. (171 kg)
Ā
Filter Specs
Filtering Area:Ā 102 sq/ft (9.5 sq/m)
Cartridge Filter:Ā 1 Micron, 15.74ā³ x 35.43ā³ (40 x 90 cm) x 1pc
Ā
* Shop Setting Air Flow measured with hoses connected to inlet. See Performance tab for more details.
